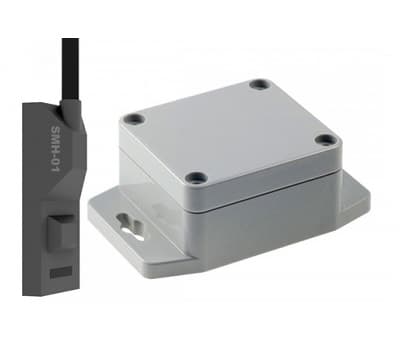

Wireless soil moisture sensor SMH-L24

The SMH-L24 determines plant available water by the SMH-01 sensor. The sensor transmits the measurement data to the controller CD-L24 and to the GW-I200 monitoring device via LoRa wireless technology over a distance up to 5 km. The SMH-L24 designed for automatic irrigation systems of greenhouses, farms and agricultural enterprises. The SMH-L24 have a durable and sealed plastic housing and can powered by various sources, including solar panels.

Space

Sensor specifications

• Operating voltage: DC9-24V/ AC24V
• Power consumption: 1W
• Wi-Fi: 802.11b/g/n
• LoRa: 433 MHz, 18 dBm
• Temperature range: -20 ÷ 60 ºC
• Case dimensions: 94x59x35 mm
• Sensor dimensions: 60x24x14 mm
• Cable length: 3 m
