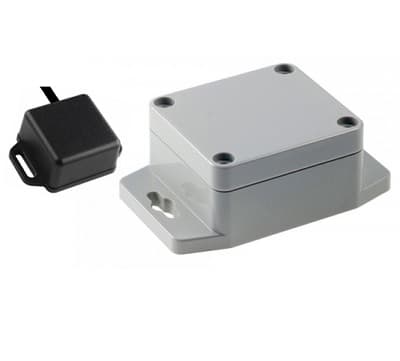

Wireless air temperature and humidity sensor ATH-L24

The ATH-L24 measures the temperature and humidity of the air. The sensor transmits the measurement data to the CD-L24 controller and to the GW-I200 monitoring device via LoRa wireless technology over a distance of up to 5 km. The ATH-L24 designed for automation systems of greenhouse, farms and agricultural enterprises. The ATH-L24 have a durable and sealed plastic housing and can powered by various sources, including solar panels.

Space

Sensor specifications

• Operating voltage: DC9-24V/AC24V
• Power consumption: 1W
• Wi-Fi: 802.11b/g/n
• LoRa: 433 MHz, 18 dBm
• Temperature range: -20 ÷ 60 ºC
• Case dimensions: 94x59x35 mm
• Sensor dimensions: 36x36x20 mm
• Cable length: 1 m
